Tautliner trailer is used as generic names for curtain side trailer. The curtains are permanently fixed to a runner at the top and detachable rails/poles at the front and rear. Allowing the curtains to be drawn open and forklifts used all along the sides for easy and efficient loading and unloading.
When closed for travel, vertical load restraint straps are attached to a rope rail beneath the tautliner for sale trailer bed, connecting the trailer bed and curtain along both sides. Winches at either end of the curtain tension it, hence the ‘Tautliner’ name.

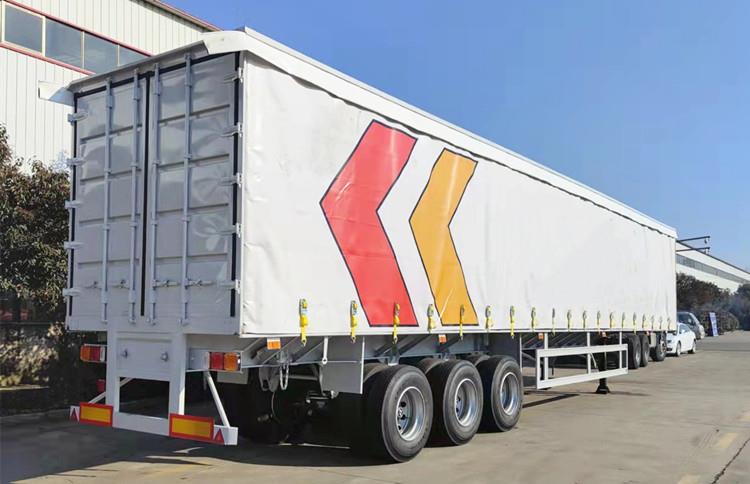

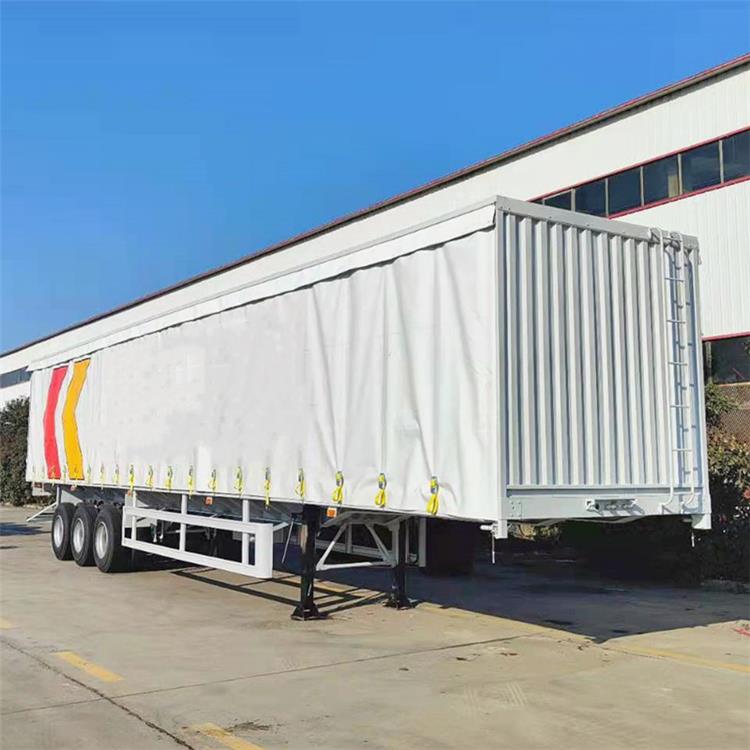

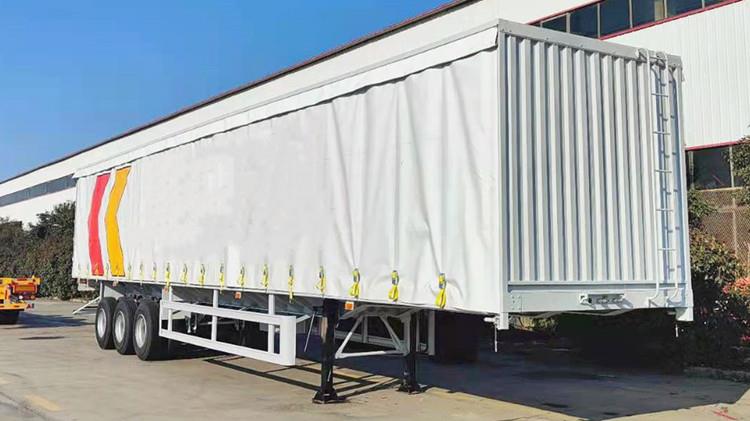

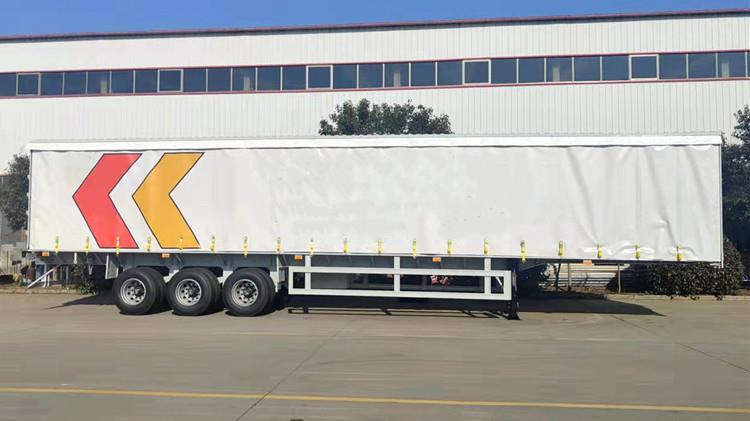

New Tri Axle Tautliner Trailer for Sale
New Tri Axle Tautliner Trailer for Sale
Overall dimension: 12500x2500x4380mm
Payload: 60, 000kg
Side: made of reinforced PVC curtains
Axles: 3 axles, 13T/16T ,FUWA/ BPW/ TITAN Brand
Tire: 12 units, 12.00R22.5 or 315/80R22.5
Rim: 9.00-22.5 or 9.75-22.5
Suspension: Mechanical suspension(Germany or America type)
Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers
King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)
Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)
Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel
Platform: 3mm-thick checkered plate
Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank
Valve: WABCO valve (specially intended for oversea market)
ABS: Optional
Light: LED light (specially intended for oversea market)
Voltage: 24V
Socket(Receptacle): 7-pin Socket (for 7 wire harness)
Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats
