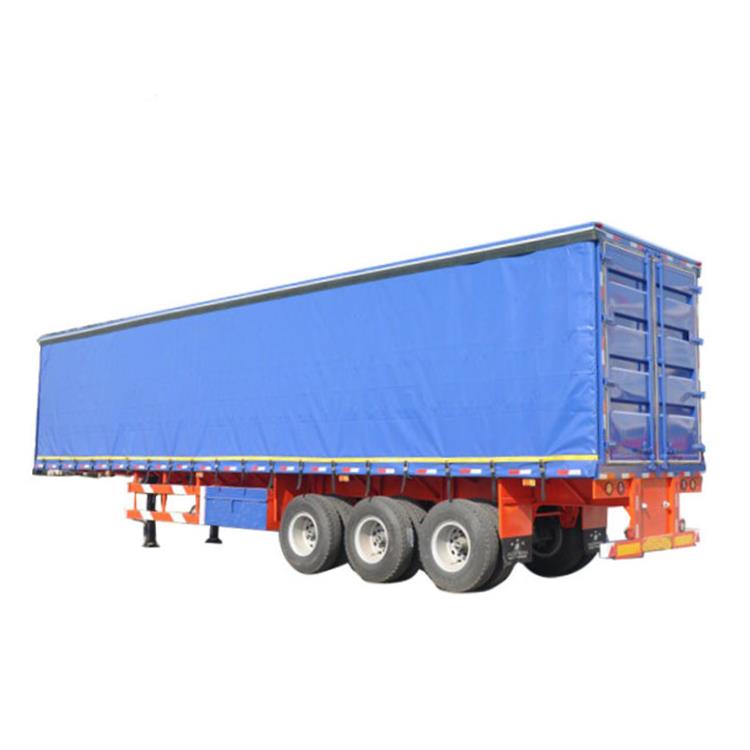

3 axle curtain side semi trailer is built for maximizing productivity, saving companies both time and money.
With curtain trailer, you get the flexibility of a flatbed when it comes to easy and quick loading and unloading from the sides and back of the curtain side semi trailer, yet you're also able to protect your cargo as you would in a van or box trailer. Man hours are also saved, as delays for dock access are gone because of the capability of loading and off-loading anywhere and at any time.
Tautliner Truck for Sale | Krone Tautliner Transport
Tautliner Truck for Sale | Krone Tautliner Transport
Overall dimension: 12500x2500x4000mm
Payload: 40, 000kg
Side: made of reinforced PVC curtains
Axles: 3 axles, 13T/16T ,FUWA/ BPW/ TITAN Brand
Tire: 12 units, 12.00R22.5 or 315/80R22.5
Rim: 9.00-22.5 or 9.75-22.5
Suspension: Mechanical suspension(Germany or America type)
Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers
King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)
Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)
Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel
Platform: 3mm-thick checkered plate
Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank
Valve: WABCO valve (specially intended for oversea market)
ABS: Optional
Light: LED light (specially intended for oversea market)
Voltage: 24V
Socket(Receptacle): 7-pin Socket (for 7 wire harness)
Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats
Don’t open a 3 axle curtain trailer which is bulging – freight could have moved and might fall on you. Open it from the back or the opposite side to check
In strong or gusty winds, open the lee side of the 3 axle curtain trailer for sale first (i.e. the side that’s not exposed to the wind
When opening any curtain in gusty winds, take care as the wind can take the curtain pole and swing it into your head, knocking you out
Loose buckles can flap around and hit passing cars – make sure all buckles are tight
Make sure you check the rating and the expiry date on any curtains to make sure they will be fine for what you are carrying
Make sure you have enough load securing restraints available to restrain the load properly
Watch where you are going while you’re walking backwards as you slide the curtains back – it’s easy to trip.
