Once the curtains are pulled back, the curtain side trailer for sale can be accessed from both sides as well as the rear door by multiple forklifts simultaneously. Drivers are in and out and back on the road quickly.
The used curtain side semi trailers can be quickly loaded and unloaded. Once the curtains are pulled back, the used curtain side trailer for sale can be accessed from both sides as well as the rear door by multiple forklifts simultaneously. Drivers are in and out and back on the road quickly.
The conestoga curtain side trailers combine the advantages of a flatbed with the covering and containment benefits of an enclosed trailer. Consisting of durable yet flexible PVC-coated vinyl side curtains which can be retracted from either the front or rear of the urban curtain side trailers for sale, and van-style swinging rear doors, a curtainside totally encloses the load for weatherproof protection and security.

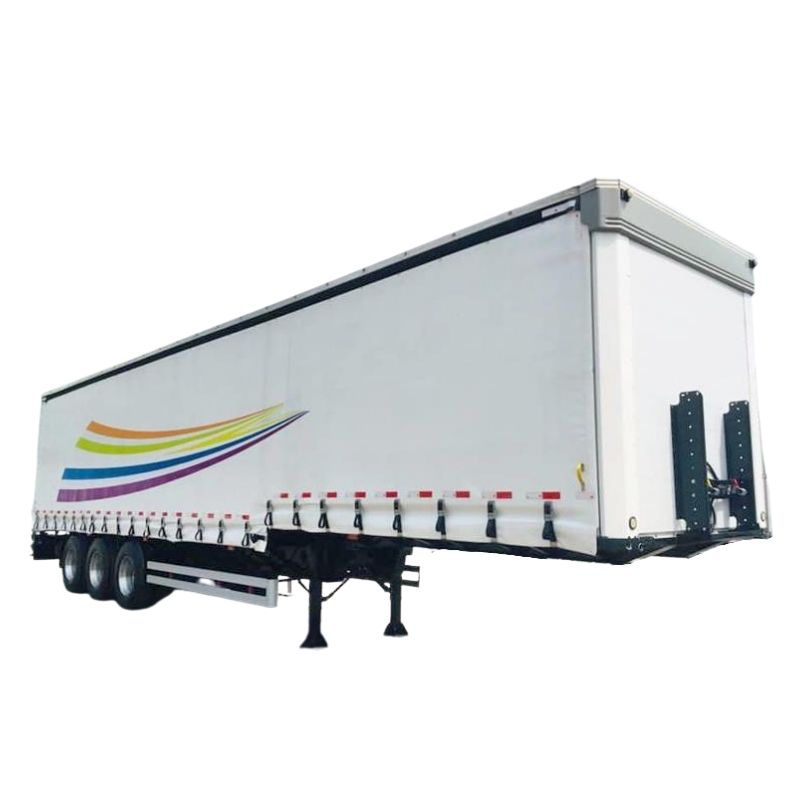

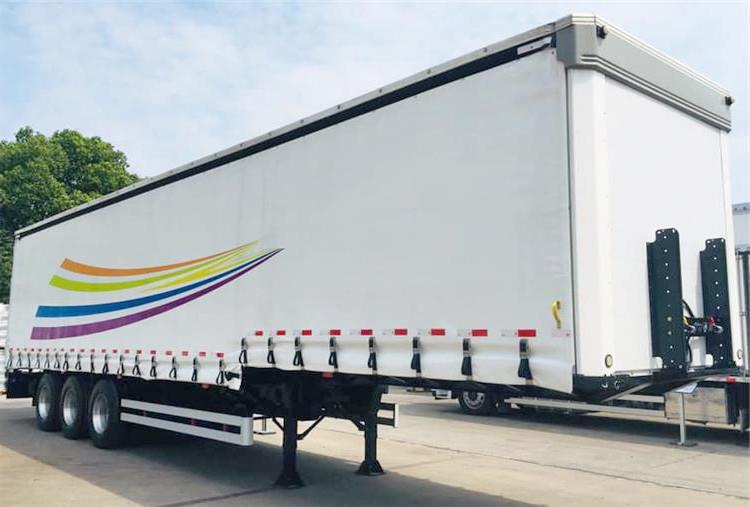

Used Urban Conestoga Curtain Side Semi Trailers for Sale
Used Urban Conestoga Curtain Side Semi Trailers for Sale
Overall dimension: 12500x2500x4380mm
Payload: 40, 000kg
Side: made of reinforced PVC curtains

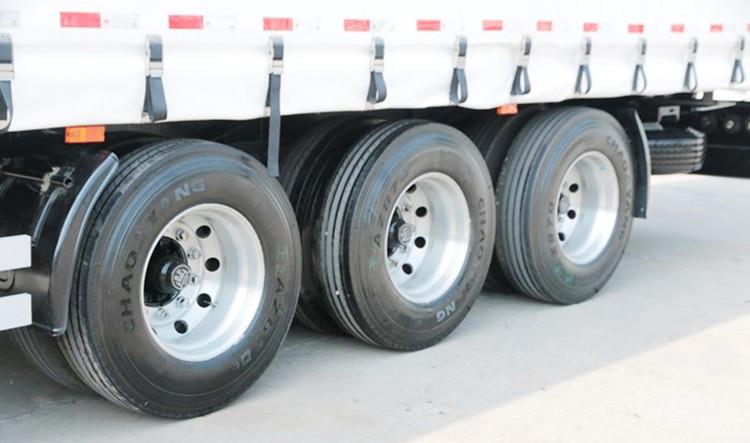

Axles: 3 axles, 13T/16T ,FUWA/ BPW/ TITAN Brand
Tire: 12 units, 12.00R22.5 or 315/80R22.5
Rim: 9.00-22.5 or 9.75-22.5
Suspension: Mechanical suspension(Germany or America type)
Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers
King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)
Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)
Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel
Platform: 3mm-thick checkered plate
Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank
Valve: WABCO valve (specially intended for oversea market)
ABS: Optional
Light: LED light (specially intended for oversea market)
Voltage: 24V
Socket(Receptacle): 7-pin Socket (for 7 wire harness)
Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats
