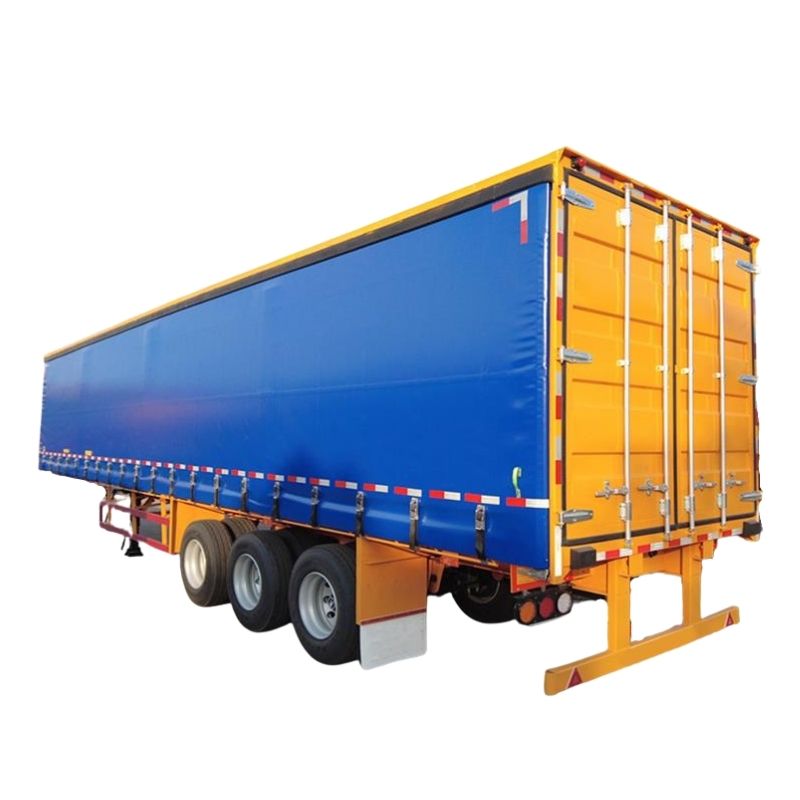

The 30 ft curtain side trailer for sale is easy to load and unload, and has high efficiency.
Simplified partial deliveries. The limitations of “first on/last off” loading are a thing of the past. Independent access to all parts of a load at any point along a route means multiple drop loads are easily doable from a single curtain side car trailer.
Curtain Side Car Trailer | 30 FT Curtain Side Trailer for Sale
Curtain Side Car Trailer | 30 FT Curtain Side Trailer for Sale
Curtain Side Car Trailer | 30 FT Curtain Side Trailer for Sale
Overall dimension: 12500x2500x4380mm
Payload: 40, 000kg
Side: made of reinforced PVC curtains
Axles: 3 axles, 13T/16T ,FUWA/ BPW/ TITAN Brand
Tire: 12 units, 12.00R22.5 or 315/80R22.5
Rim: 9.00-22.5 or 9.75-22.5
Suspension: Mechanical suspension(Germany or America type)
Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers
King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)
Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)
Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel
Platform: 3mm-thick checkered plate
Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank
Valve: WABCO valve (specially intended for oversea market)
ABS: Optional
Light: LED light (specially intended for oversea market)
Voltage: 24V
Socket(Receptacle): 7-pin Socket (for 7 wire harness)
Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats
