With lorry curtain sides for sale, you get the flexibility of a flatbed when it comes to easy and quick loading and unloading from the sides and back of the lorry trailer curtains, yet you're also able to protect your cargo as you would in a van or box trailer.
Lorry curtain sides for sale is consisting of durable yet flexible PVC-coated vinyl side curtains which can be retracted from either the front or rear of the truck trailer side curtains, and van-style swinging rear doors, a curtainside totally encloses the load for weatherproof protection and security.

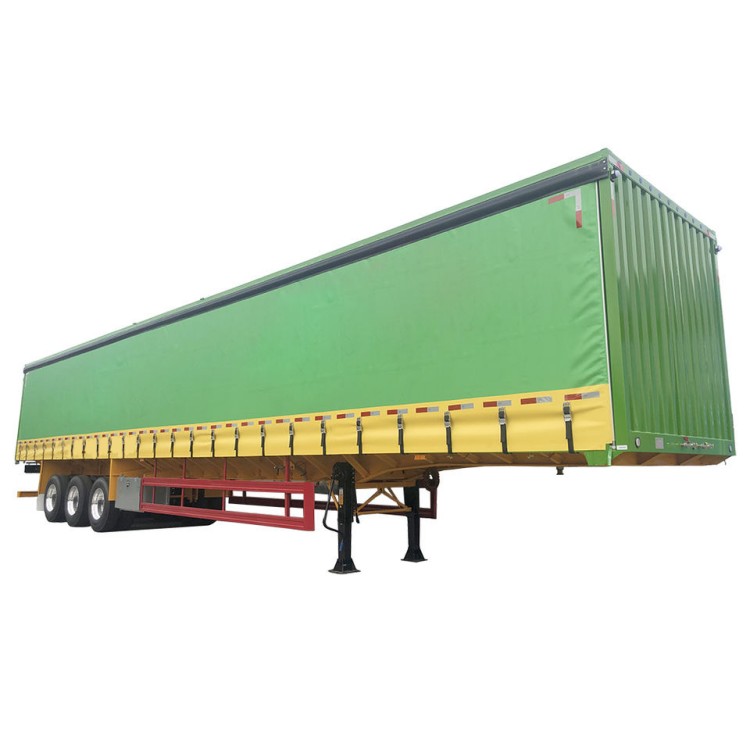

Tri Axle Lorry Curtain Sides for Sale | Lorry Truck trailer Side Curtains
Tri Axle Lorry Curtain Sides for Sale | Lorry Truck trailer Side Curtains
Overall dimension: 12500x2500x4000mm
Payload: 40, 000kg
Side: made of reinforced PVC curtains
Axles: 3 axles, 13T/16T ,FUWA/ BPW/ TITAN Brand
Tire: 12 units, 12.00R22.5 or 315/80R22.5
Rim: 9.00-22.5 or 9.75-22.5
Suspension: Mechanical suspension(Germany or America type)
Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers
King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)
Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)
Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel
Platform: 3mm-thick checkered plate
Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank
Valve: WABCO valve (specially intended for oversea market)
ABS: Optional
Light: LED light (specially intended for oversea market)
Voltage: 24V
Socket(Receptacle): 7-pin Socket (for 7 wire harness)
Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats
