Used tautliner trailers for sale on gumtree can be rainproof, dustproof, heat-proof, safe and environmentally friendly. The curtained sides and rear door provide cargo security and weather protection.
Full rear and side access to cargo and flatbed systems permit fast loading and unloading, without advance first-in and last-out load planning. This used tautliners for sale saves time and transport costs.

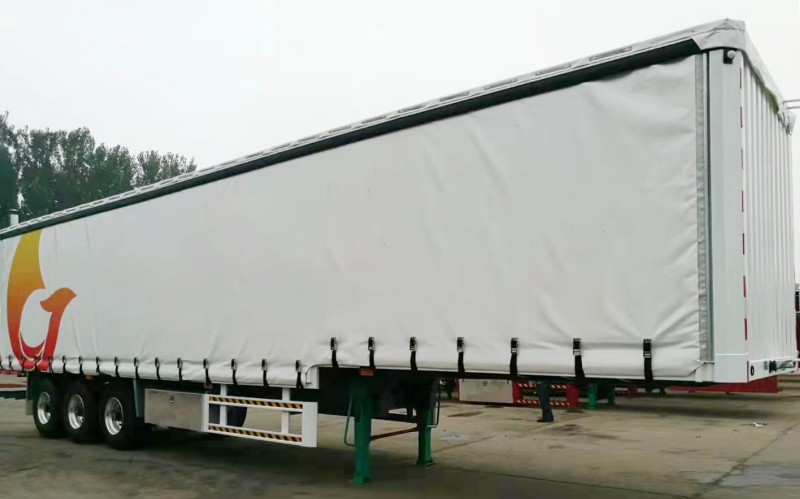

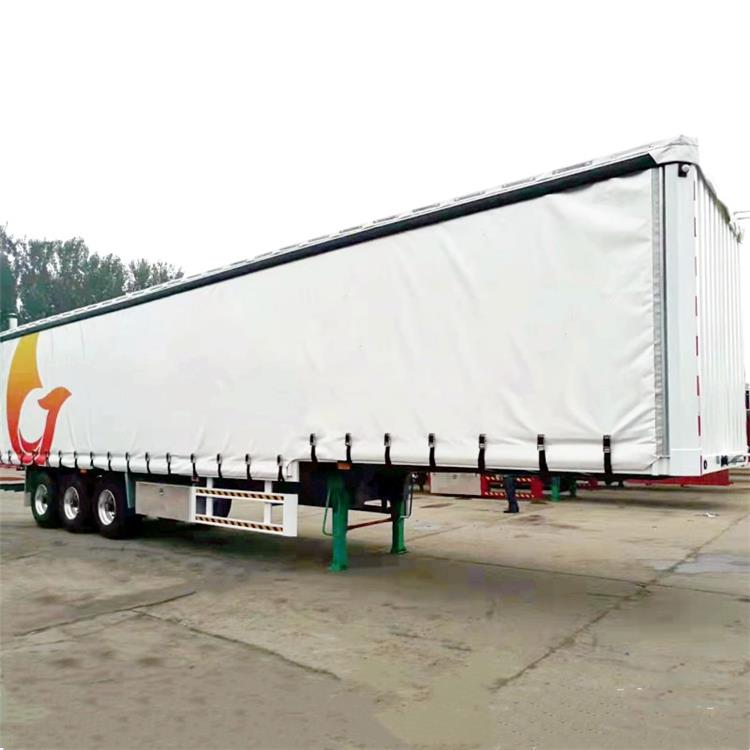

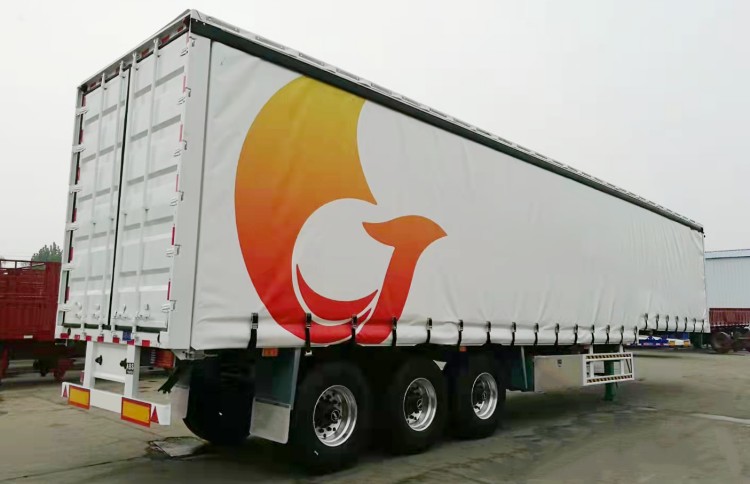

3 Axle Step Deck Frame Curtain Side Car Trailer for Sale
3 Axle Step Deck Frame Curtain Side Car Trailer for Sale
Overall dimension: 12500x2500x4380mm
Payload: 40, 000kg
Side: made of reinforced PVC curtains
Axles: 3 axles, 13T/16T ,FUWA/ BPW/ TITAN Brand
Tire: 12 units, 12.00R22.5 or 315/80R22.5
Rim: 9.00-22.5 or 9.75-22.5
Suspension: Mechanical suspension(Germany or America type)
Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers
King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)
Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)
Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel

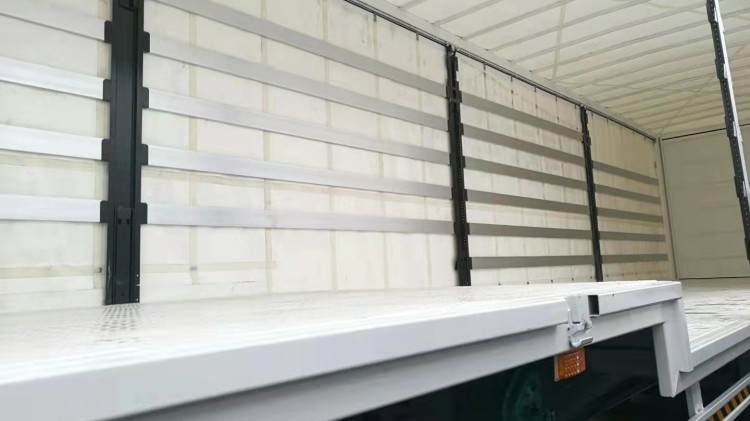

Platform: 3mm-thick checkered plate
Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank
Valve: WABCO valve (specially intended for oversea market)
ABS: Optional
Light: LED light (specially intended for oversea market)
Voltage: 24V
Socket(Receptacle): 7-pin Socket (for 7 wire harness)
Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats
If you’re buying, using or hiring a used tautliner trailers for sale on gumtree, then you need to know how to open and close them and what to check for as it can be dangerous:
Don’t open a step frame used tautliner curtains for sale which is bulging – freight could have moved and might fall on you. Open it from the back or the opposite side to check
In strong or gusty winds, open the lee side of the step deck tautliner first
When opening any curtain in gusty winds, take care as the wind can take the curtain pole and swing it into your head, knocking you out
Loose buckles can flap around and hit passing cars – make sure all buckles are tight
Make sure you check the rating and the expiry date on any curtains to make sure they will be fine for what you are carrying
Make sure you have enough load securing restraints available to restrain the load properly
Watch where you are going while you’re walking backwards as you slide the curtains back – it’s easy to trip.
