A curtain side lorry for sale is ideally used for loading up palletised freight that can be lifted with a forklift, but almost any load that is contained in bulk bags can be safely transported via a lorry curtain sider.
A trailer curtain sider lorry is a type of flat-bed trailer which has PVC-coated curtains fixed on either side of trailer curtain side.
The curtains are supported by roof rails and aluminium posts at the front and back of the vehicle, and tightly secured with buckles. Drivers can draw the curtains back to allow for easy loading and unloading from the side, or simply open up the rigid rear door of the lorry curtain sider. They also provide protection from the weather, eliminating the time-consuming and finicky task of tarping.

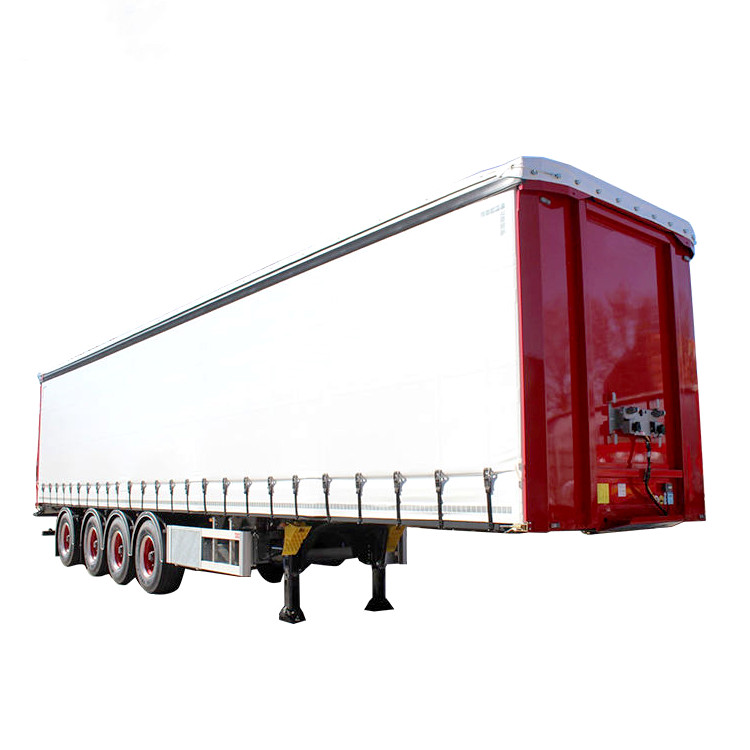

45 FT Trailer Curtain Sider Lorry for Sale
Overall dimension: 13500x2500x4380mm
Payload: 60, 000kg
Side: made of reinforced PVC curtains
Axles: 4 axles, 13T/16T ,FUWA/ BPW/ TITAN Brand
Tire: 16 units, 12.00R22.5 or 315/80R22.5
Rim: 9.00-22.5 or 9.75-22.5
Suspension: Mechanical suspension(Germany or America type)
Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers
King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)
Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)
Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel
Platform: 3mm-thick checkered plate
Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank
Valve: WABCO valve (specially intended for oversea market)
ABS: Optional
Light: LED light (specially intended for oversea market)
Voltage: 24V
Socket(Receptacle): 7-pin Socket (for 7 wire harness)
Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats
1. Moving palletised freight
A curtain side lorry for sale is ideally used for loading up palletised freight that can be lifted with a forklift, but almost any load that is contained in bulk bags can be safely transported via a lorry curtain sider.
2. Transporting loose freight
Some trailer curtain sider lorry also come with a retractable roof curtain, which makes it easier to load loose freight (i.e. loads that do not require packaging). Freight such as wood chips, sawdust, and animal feed can be simply dropped from above and contained from the elements.
